Sagola 6000X Air Heater
£3,254.40
The Sagola 6000X Air Heater system heats compressed air to a constant working temperature to ensure a stable painting process and a reduction of relative humidity.
- Description
- Key Features
- Additional information
- Reviews (0)
- Recommended Temperatures
Description
Sagola 6000X Air Heater
Maximum Air Quality All Year Round
Regardless of the environmental conditions, the Sagola 6000 supplies compressed air used in painting processes at a constant temperature, even when there are large temperature differences between day and night, winter and summer.

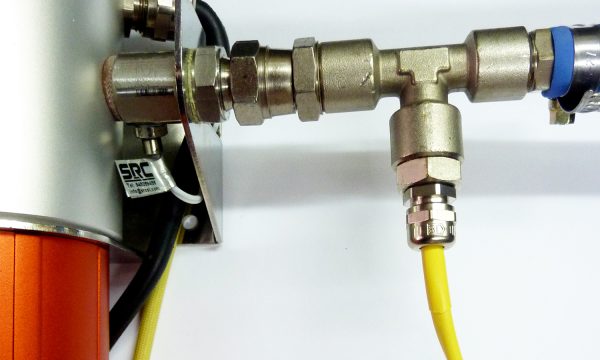

Supplied with an anti-static hose, specially designed to prevent heat loss of the air before it reaches the nozzle.
Easy to Use

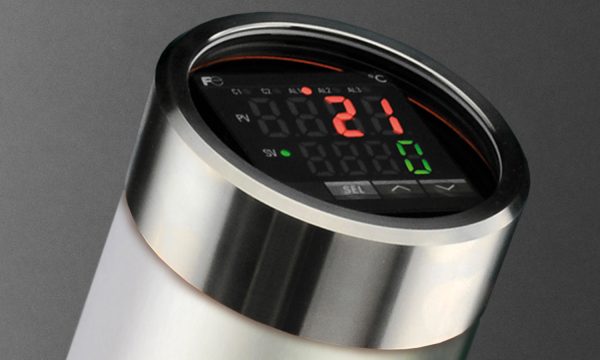

Lightweight, small and easy to install, the Sagola 6000 is fitted with a PID digital temperature controller and push button LED display with red and green indicators to identify when up to the termperature selected.
Summary
The Sagola 6000X Air Heater provides an optimal surface quality finish, whilst maintaining a constant temperature in the compressed air which reduces its relative humidity. This avoids condensation problems in cold an wet environments as required for the application of certain types of products.
To ensure the the Sagola 6000X is safe to touch, it has a cool touch case where the cold air enters the pressurised chamber cooling the
outer shell of the equipment, keeping it isolated from the hot chamber inside.
- Temperature stability both in the compressed air and the final painting elements such as hose and spray gun.
- Stable painting process in areas with large temperature changes between day and night, winter and summer.
- Constant working temperature.
- Compact and robust.
- Digital temperature display.
- Cold touch, thermal insulation.
- Easy to use; power button and temperature controller.
- Out of the box installation.
- Lightweight and small; easy to locate.
- Right temperature in the spray gun almost immediately.
- Includes a insulated hose to get the maximum energy-performance.
- Designed to be fitted after Sagola 5000 and Sagola 4000 series air filtration systems and before the spray gun.
- Tough heavy duty construction
- Machined aluminum casing
- Easy to Replace Parts

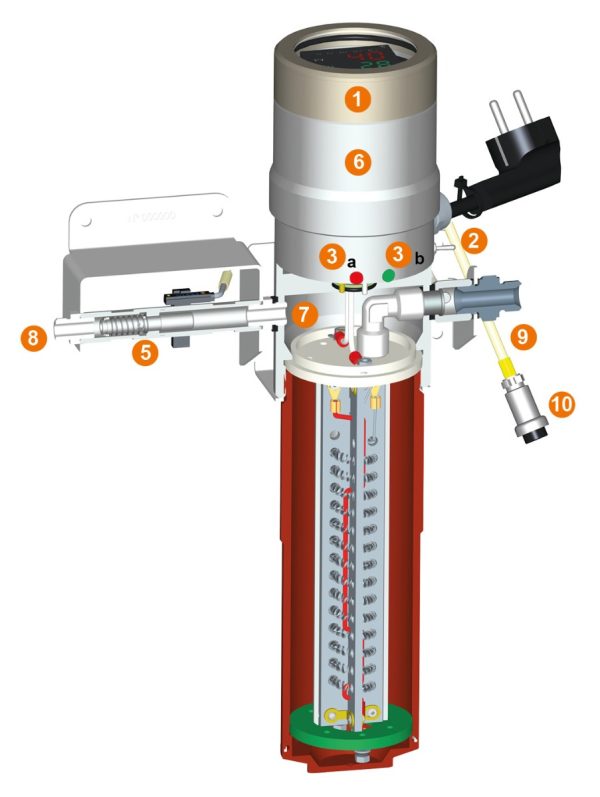

- Controls
- Mains switch
- 3a. Red LED (Heating)
- 3b. Green LED (Ready)
- Temperature sensor
- Flow meter
- Cold air chamber (depressurised)
- Hot air chamber (pressurised)
- Air inlet (from air filter)
- Air outlet (hose)
- Electrical connection
- Wall mounting bracket
Additional information
Power | 110-240V (50-60Hz) |
---|---|
Maximum Consumption | 800 watt |
Maximum Working Pressure | 7bar (101psi) |
Maximum Flow at 7bar (101 psi) | 750l/min (26.48 cfm) |
Dimensions | 405 x 92 x 255mm (15.94 x 3.62 x 10.04”) |
Weight | 3.6kg (7.4lbs) |
Packing List | Sagola 6000X Air Heater with 11m (36ft) Heated Hose & UK Plug Adaptor (UK only) |
Be the first to review “Sagola 6000X Air Heater” Cancel reply
Clearcoat | 40-60°C (104-140°F) |
Waterborne basecoat | 30-50°C (86-122°F) |
Solvent based basecoat | 30-40°C (86-104°F) |
