Sagola V4000 Automatic Spray Gun
£1,137.60 – £1,807.20
The new Sagola V4000 Automatic Spray Gun is perfect for automated spray lines where finish quality, high production, robustness and durability matter most.
- Description
- Gun Diagram
- Application Guide
- Additional information
- Reviews (0)
Description
Sagola V4000 Automatic Spray Gun

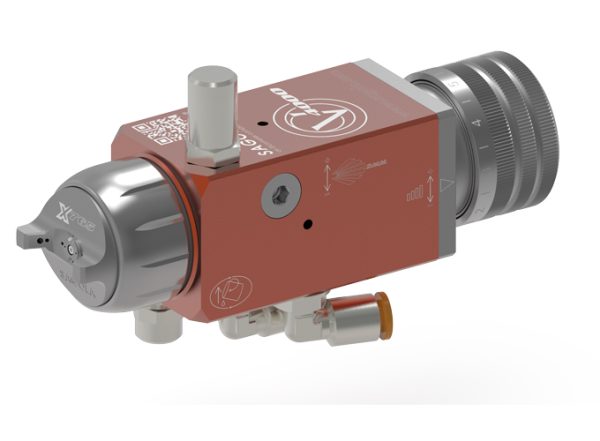

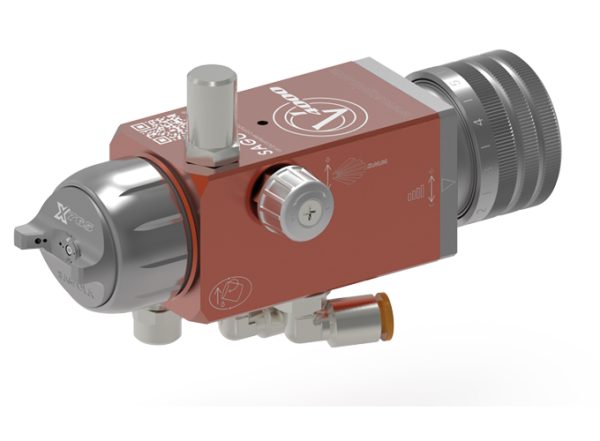

Manual or robotic control
For fully automated paint lines the Sagola V4000 is available with automatic fan size regulation, where an air inlet replaces the manual regulator wheel.

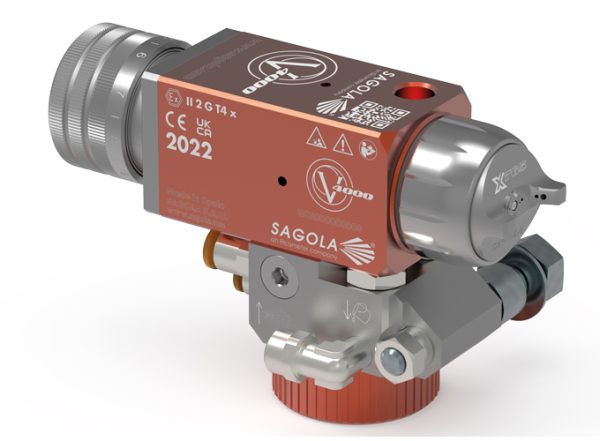

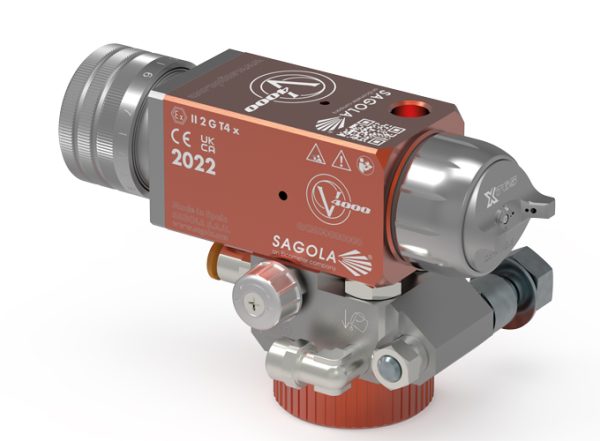

Quick Change – minimal downtime

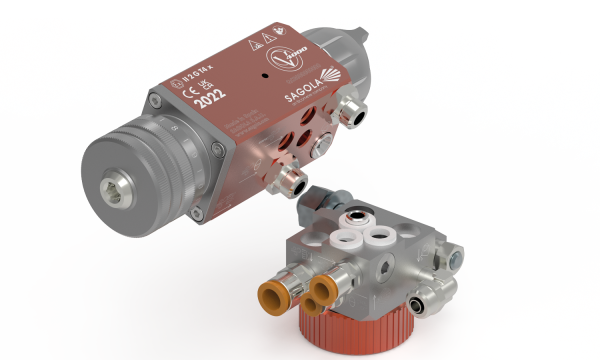

Available with quick change mount, the Sagola V4000 simplifies maintenance and cleaning work, allowing you to reposition the gun in exactly the same place keeping the setup parameters.
Versatile
The extensive range of interchangeable needles, nozzles, and aircaps enables the Sagola V4000 to apply all types of paints and sprayable products – even abrasive fluids!
Metal on metal technology

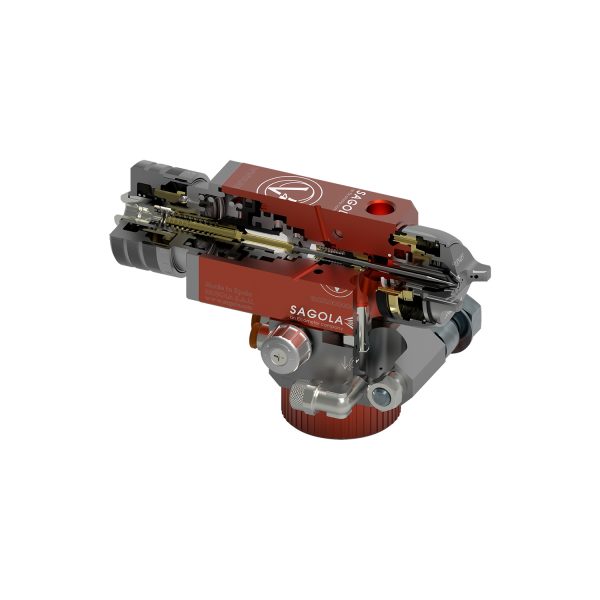

The Sagola V4000 has no air diffusers, blind chambers or threads in contact with paint, and no gaskets, seals or plastic parts in the product area – just metal on metal contact making it easier to clean and maintain.
Access to complex shaped parts
Thanks to its size, the Sagola V4000 Series can be manoeuvred to access even the most complex components.
Quality built in
Manufactured in accordance with International Standards EN 1953:2013 Ap. 5.2.4
- Interchangeable Parts
- Consistent high quality finishes
- Low Maintenance
Key Features
1) All the benefits of the Sagola X4100 in an automatic spray gun.
2) Metal to metal technology. No gaskets, O-rings or plastic parts in the fluid area.
3) Highly durable self-adjusting packing gland.
4) Anodized aluminium aircaps (corrosion free). Great resistance and durability. Suitable for aggressive environments.
5) High precision progressive fan regulator.
6) Quick connector product/fluid inlet.
7) Quick connector air spray inlet.
8) All connections on the same side of the gun or quick change mount for easier setup of the painting line.
9) Product regulator. Precision adjustment with vernier set to “0”.
10) Highly durable operating piston designed and tested for demanding continuous paint lines
11) Robust forged anodized aluminium body, treated with an anti-corrosion coating both inside and out, for high protection against corrosion.
Needle & Nozzle | Paint Flow Output* | Air Consumption | Fan size* | Aircap | Solvent Based | Water Based | Primer | Base Coats | Top Coats & High Gloss Finishes | Stains, Varnishes & Lacquers | Adhesives & Sealers | Acrylics | Ceramic & Stove Enamels | Cementitious, High Volume Solids & Abrasive | Metallics | |||
0.80 | 179g/min (6.3oz/min) | 315LPM (11.12CFM) | 301mm (11.8″) | Conventional |
|
|
|
|
||||||||||
1.00 | 211g/min (7.4oz/min) | 315LPM (11.12CFM) | 310mm (12.2″) | Conventional |
|
|
|
|
|
|
||||||||
1.20 | 250g/min (8.8oz/min) | 315LPM (11.12CFM) | 320mm (12.6”) | Conventional |
|
|
|
|
|
|||||||||
1.40 | 295g/min (10.4oz/min) | 315LPM (11.12CFM) | 329mm (12.9”) | Conventional |
|
|
||||||||||||
500 | ||||||||||||||||||
0.80 | 161g/min (5.6oz/min) | 480LPM (16.95CFM) | 320mm (12.6”) | HVLP |
|
|
||||||||||||
1.00 | 190g/min (6.7oz/min) | 480LPM (16.95CFM) | 300mm (11.8″) | HVLP |
|
|
||||||||||||
1.20 | 225g/min (7.9oz/min) | 480LPM (16.95CFM) | 310mm (12.2″) | HVLP |
|
|
|
|||||||||||
600 | ||||||||||||||||||
0.80 | 157g/min (5.5oz/min) | 630LPM (22.25CFM) | 320mm (12.6”) | HVLP |
|
|
||||||||||||
1.00 | 186g/min (6.5 oz/min) | 630LPM (22.25CFM) | 330mm (13″) | HVLP |
|
|
||||||||||||
1.20 | 220g/min (7.7oz/min) | 630LPM (22.25CFM) | 340mm (13.3″) | HVLP |
|
|
|
|||||||||||
1.40 | 259g/min (9.1oz/min) | 630LPM (22.25CFM) | 350mm (13.7”) | HVLP |
|
|
|
|||||||||||
XT01B | ||||||||||||||||||
0.80 | 179g/min (6.3oz/min) | 295LPM (10.41CFM) | 291mm (11.4″) | Compliant |
|
|
|
|||||||||||
1.00 | 206g/min (7.2oz/min) | 295LPM (10.41CFM) | 300mm (11.8″) | Compliant |
|
|
|
|
||||||||||
1.20 | 290g/min (10.2oz/min) | 295LPM (10.41CFM) | 310mm (12.2″) | Compliant |
|
|
|
|||||||||||
1.40 | 342g/min (12oz/min) | 295LPM (10.41CFM) | 319mm (12.5″) | Compliant |
|
|
|
|||||||||||
X777 | ||||||||||||||||||
1.00 | 241g/min (8.5oz/min) | 345LPM (12.18CFM) | 375mm (14.7”) | Conventional |
|
|
|
|
|
|
||||||||
XT03 | ||||||||||||||||||
1.00 | 202g/min (7.1oz/min) | 460LPM (16.24CFM) | 339mm (13.3″) | HVLP |
|
|
|
|||||||||||
1.20 | 238g/min (8.4oz/min) | 460LPM (16.24CFM) | 349mm (13.7″) | HVLP |
|
|
|
|||||||||||
1.40 | 280g/min (9.8oz/min) | 460LPM (16.24CFM) | 360mm (14.1”) | HVLP |
|
|
|
|||||||||||
X SuperVIT 1.00 | ||||||||||||||||||
1.00 | 274g/min (9.6oz/min) | 380LPM (13.42CFM) | 334mm (13.1″) | Compliant |
|
|
|
|
|
|
||||||||
1.20 | 324g/min (11.4oz/min) | 380LPM (13.42CFM) | 345mm (13.5″) | Compliant |
|
|
|
|
|
|
||||||||
1.40 | 382g/min (13.4oz/min) | 380LPM (13.42CFM) | 355mm (13.9″) | Compliant |
|
|
|
|||||||||||
X20A | ||||||||||||||||||
1.20 | 215g/min (7.6oz/min) | 430LPM (15.18CFM) | 348mm (13.7″) | Conventional |
|
|
|
|||||||||||
1.40 | 254g/min (9oz/min) | 430LPM (15.18CFM) | 359mm (14.1″) | Conventional |
|
|
||||||||||||
1.80 | 300g/min (10.6oz/min) | 430LPM (15.18CFM) | 370mm (14.5″) | Conventional |
|
|
|
|||||||||||
797 | ||||||||||||||||||
1.00 | 194g/min (6.8oz/min) | 370LPM (13.07CFM) | 330mm (13″) | Conventional |
|
|
|
|||||||||||
1.20 | 310g/min (11oz/min) | 250LPM (8.83CFM) | 329mm (12.9”) | Conventional |
|
|
|
|||||||||||
X3030 | ||||||||||||||||||
1.20 | 330g/min (11.6oz/min) | 514LPM (18.15CFM) | 310mm (12.2″) | HVLP |
|
|
|
|
||||||||||
1.40 | 389g/min (13.7oz/min) | 514LPM (18.15CFM) | 319mm (12.5″) | HVLP |
|
|
|
|||||||||||
X96 | ||||||||||||||||||
1.40 | 216g/min (7.6oz/min) | 250LPM (8.83CFM) | 310mm (12.2″) | Conventional |
|
|
|
|
||||||||||
1.80 | 310g/min (11oz/min) | 250LPM (8.83CFM) | 340mm (13.3″) | Conventional |
|
|
|
|||||||||||
Sagola V4000 with Tungsten Carbide Needle and Nozzle kit |
||||||||||||||||||
X765 |
||||||||||||||||||
1.20 | 250g/min (8.8oz/min) | 315LPM (11.12CFM) | 320mm (12.6”) | Conventional |
|
|
||||||||||||
1.40 | 295g/min (10.4oz/min) | 315LPM (11.12CFM) | 329mm (12.9”) | Conventional |
|
|
||||||||||||
500 |
||||||||||||||||||
1.20 | 225g/min (7.9oz/min) | 480LPM (16.95CFM) | 310mm (12.2″) | HVLP |
|
|
||||||||||||
600 |
||||||||||||||||||
1.20 | 220g/min (7.7oz/min) | 630LPM (22.25CFM) | 340mm (13.3″) | HVLP |
|
|
||||||||||||
1.40 | 259g/min (9.1oz/min) | 630LPM (22.25CFM) | 350mm (13.7”) | HVLP |
|
|
|
|||||||||||
XT03 |
||||||||||||||||||
1.40 | 280g/min (9.8oz/min) | 460LPM (16.24CFM) | 360mm (14.1”) | HVLP |
|
|
|
|||||||||||
XT01B |
||||||||||||||||||
1.20 | 290g/min (10.2oz/min) | 295LPM (10.41CFM) | 310mm (12.2″) | Compliant |
|
|
||||||||||||
78 |
||||||||||||||||||
1.40 | 300g/min (10.6oz/min) | 410LPM (14.48CFM) | 360mm (14.1”) | Conventional |
|
|
|
|||||||||||
67 |
||||||||||||||||||
1.80 | 300g/min (10.6oz/min) | 400LPM (14.12CFM) | 310mm (12.2″) | Conventional |
|
|
|
|
||||||||||
64 |
||||||||||||||||||
2.20 | 354g/min (12.5oz/min) | 400LPM (14.12CFM) | 290mm (11.4″) | Conventional |
|
|
|
|
||||||||||
62 |
||||||||||||||||||
2.80 | 417 g/min (14.7 oz/min) | 410LPM (14.48CFM) | 300mm (11.8″) | Conventional |
|
|
|
|
Additional information
Mount | Direct Mount Manual, Direct Mount Robotic, Quick Change Mount Manual, Quick Change Mount Robotic |
---|---|
Weight | 915g (2.01lbs), 987g (2.17lbs), 1.24kg (2.73 lbs), 1.32kg (2.90lbs) |
Dimensions | 164 x 45 x 104mm (6.4 x 1.7 x 4.1"), 164 x 45 x 104mm (6.4 x 1.7 x 4.1"), 164 x 45 x 174mm (6.4 x 1.7 x 6.8"), 164 x 45 x 174mm (6.4 x 1.7 x 6.8") |
Operation inlet connection | 4mm (1/8") |
Air inlet connection | 4mm (1/8") |
Product inlet connection | BSP 1/4" M |
Maximum air pressure | 8bar (116psi) |
Recommended working air pressure | 2 – 3bar |
Needle / Nozzle Material | Stainless Steel, Tungsten Carbide |
Aircap | X765, 500, 600, XT01B, X777, XT03, X SuperVIT 1.00, X20A, 797, X3030, X96, X765, 500, 600, XT03, XT01B, 78, 67, 64, 62 |
Needle / Nozzle | 0.80, 1.00, 1.20, 1.40, 1.80, 2.20, 2.80 |
