Sagola Spot Repair Kit
£1,398.00
Professional Spot SMART Repair Kit
- Description
- Gun Diagram
- Size Guide
- Additional information
- Reviews (0)
Description
Sagola Spot Repair Kit
Complete jobs faster whilst using less material with the Sagola Spot Repair Kit – everything you need for spot and SMART (Small and Medium Area Repair Technique) repairs, touch ups of small to large panels and spraying smaller panels and parts in one easy-to-use kit!

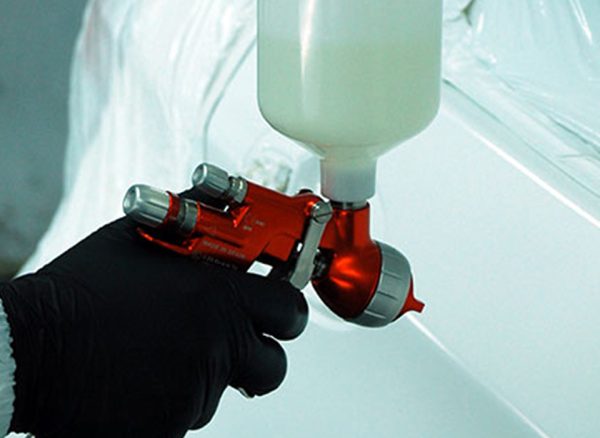

Simply unpack, plug in & paint.

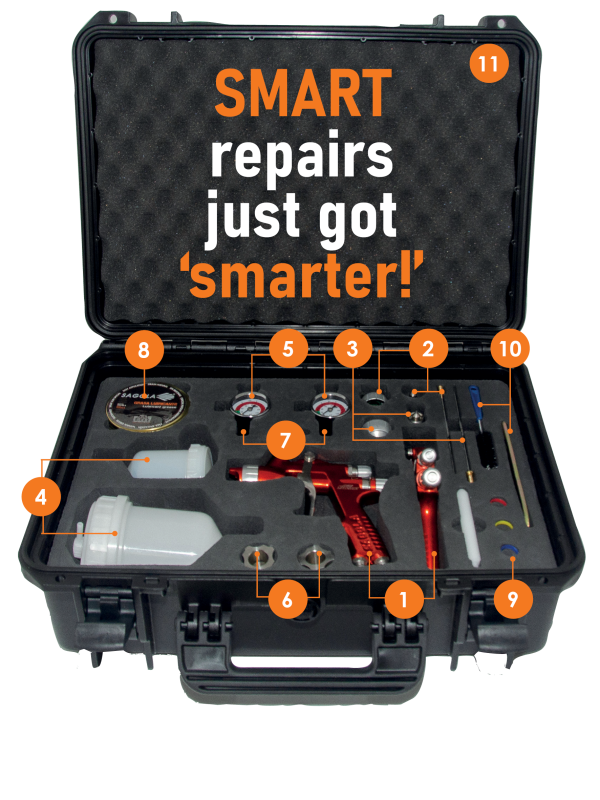

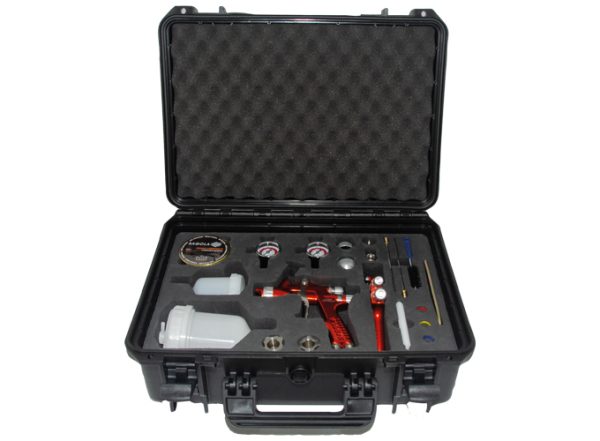

What’s in the kit?

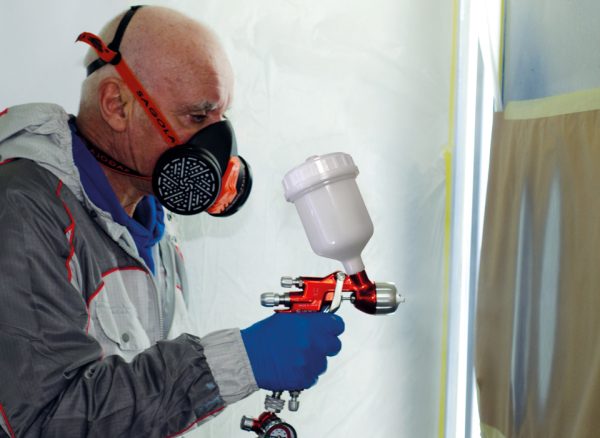

- Two Sagola Mini Xtreme guns complete with 1.00mm Fluid Nozzle set ups:
One for Basecoat
– Aqua air cap for Water based basecoats
– HVLP air cap for Solvent based basecoats
One for Clearcoat
– EPA air cap for all clearcoats - Spare 1.2mm Needle/Nozzle kit for UHS clearcoats (ultra high solids), 2K topcoats, primers, UV primers or thicker basecoats
- Mini Tech Air Cap for the finest retouches supplied with unique 0.6mm Needle/Nozzle kit – transforming the spray gun into an airbrush
- 125ml & 200ml Paint Cups suitable for any size repair
- Two premium Sagola RC1 Flow Regulators for precise control of air, crucial for applying basecoats, drop coats and blending adjacent panels
- Two 3M™ PPS Disposable Cup Couplings
- Two Steel Connectors
- Spray Gun Lubricant Grease for threads to keep parts in perfect condition, each time, everytime!
- Colour Coded “O” Rings to personalise the guns for easier identification
- Spray Gun Tool & Cleaning Brush

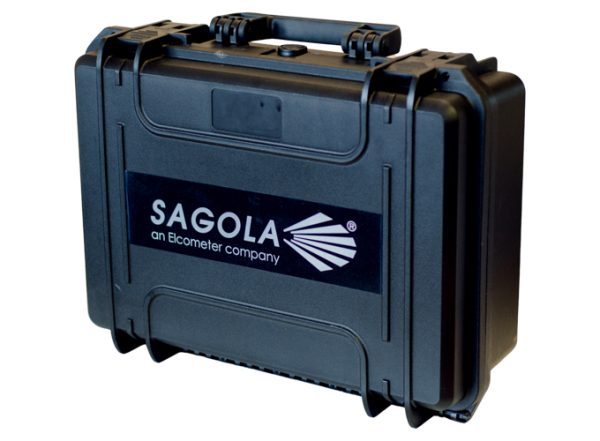

- Solid Protective Case laid out to keep everything at hand.
- Tough heavy duty construction
- All in one Kit
- Easy to Replace Parts
Guaranteed Consistent Quality Finish
1. Optimum paint flow with a fast and smooth applications. Interchangeable steel nozzles.
2. Precisely measure flow measurement with the product regulator and its indicator ring.
3. No metallic or plastic external parts used in the air distribution. This makes the cleaning process easier.
4. Save paint with the high precision “soft flow” air valve that allows accurate setup of air pressure.
5. Interchangeable aluminum air caps with unique colors.
Simple Maintenance
6. Manufactured without gaskets or seals in the product area. No air diffusers, blind chambers or threads in contact with the paint/product/material. Just metal in contact with metal. Extremely easy to clean and maintain.
7. The only spray gun in the refinishing market with one single piece automatic paint packing gland minimizing potential damage and breakage and easier to remove when cleaning the gun.
Built to be Easy
8. Ergonomic anodized forged aluminum body that is perfectly balanced.
9. Stainless steel trigger designed to reduce operator discomfort and fatigue. Smooth trigger action.
10. Color coded identifiers that allow for easy organization of spray guns.
11. Balanced and ergonomic handle.
12. Fan width regulator.

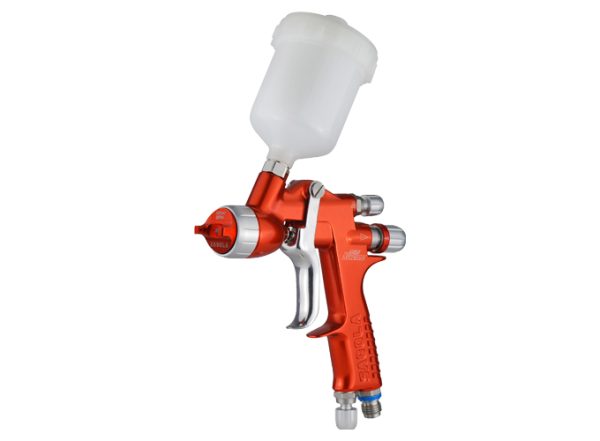

Sagola Mini Xtreme kit Contents
Each Mini Xtreme kit is supplied with:
- Aircap, Needle & Nozzle Kit
- 125ml or 500ml reusable plastic gravity cup with filter
- Wrench for removing & fitting the nozzle plus other service needs
- Color coded rings for organizing multiple guns
- Key assembly for changing the air valve
Needle & Nozzle | Ideal for use with: | Working Pressure Range | Air Consumption 29 PSI | Output Flow (average) | Application Distance | Fan Width (Max) | Supplied Cup |
0.80mm | Solvent Based Coats Spot Repair |
1.0 – 1.5bar (15 – 22psi) |
190LPM (6.71CFM) |
49g/min (1.7oz/min) |
18 – 20cm (7 – 7.9”) |
110mm (4.33”) |
125ml (White) |
1.00mm | Solvent Based Coats Waterborne Basecoats Spot Repair |
1.0 – 1.5bar (15 – 22psi) |
190LPM (6.71CFM) |
97g/min (3.4oz/min) |
18 – 20cm (7 – 7.9”) |
195mm (7.68”) |
125ml (White) |
1.20mm | Solvent Based Coats Waterborne Basecoats UV Primers Spot Repair |
1.2 – 2.0bar (17 – 29psi) |
190LPM (6.71CFM) |
162g/min (5.7oz/min) |
18 – 20cm (7 – 7.9”) |
18 – 20cm (7 – 7.9”) |
125ml (Black) |
Needle & Nozzle | Ideal for use with: | Working Pressure Range | Air Consumption 29 PSI | Output Flow (average) | Application Distance | Fan Width (Max) | Supplied Cup |
0.80mm | Solvent Based Coats Spot Repair |
1.0 – 1.5bar (15 – 22psi) |
190LPM (6.71CFM) |
49g/min (1.7oz/min) |
18 – 20cm (7 – 7.9”) |
110mm (4.33”) |
500ml (White) |
1.00mm | Express Drying Clear Coats HS Clear Coats Spot Repair |
1.0 – 1.5bar (15 – 22psi) |
190LPM (6.71CFM) |
97g/min (3.4oz/min) |
18 – 20cm (7 – 7.9”) |
195mm (7.68”) |
500ml (White) |
1.00mm | UHS Clear Coats Spot Repair |
1.2 – 2.0bar (17 – 29psi) |
190LPM (6.71CFM) |
162g/min (5.7oz/min) |
18 – 20cm (7 – 7.9”) |
260mm (10.24”) |
500ml (White) |
Needle & Nozzle | Ideal for use with: | Working Pressure Range | Air Consumption 29 PSI | Output Flow (average) | Application Distance | Fan Width (Max) | Supplied Cup |
1.00mm | Primers Sanding Surfacers Spot Repair |
1.8 – 2.0bar (26 – 29psi) |
325LPM (11.48CFM) |
80g/min (2.8oz/min) |
10-15cm (3.9 – 5.9”) |
155mm (6.10”) | 125ml (White) |
1.20mm | Primers Sanding Surfacers Spot Repair |
1.8 – 2.0bar (26 – 29psi) |
325LPM (11.48CFM) |
123g/min (4.3oz/min) |
10-15cm (3.9 – 5.9”) |
195mm (7.68”) |
125ml (White) |
1.30mm | Primers Sanding Surfacers Spot Repair |
1.8 – 2.0bar (26 – 29psi) |
325LPM (11.48CFM) |
133g/min (4.7oz/min) |
10-15cm (3.9 – 5.9”) |
215mm (8.46”) |
500ml (White) |
Needle & Nozzle | Ideal for use with: | Working Pressure Range | Air Consumption 29 PSI | Output Flow (average) | Application Distance | Fan Width (Max) | Supplied Cup |
0.60mm | Low Viscosity Primers Spot Repair |
0.5 – 1.0bar (7.25 – 14.5psi) |
52LPM (11.12CFM) |
96g/min (3.39oz/min) |
18 – 20cm (7 – 7.9”) |
50mm (1.96”) |
500ml (White) |
Additional information
Version | EURO, US, NITTO |
---|---|
Air Cap | Aqua Air Cap, EPA Air Cap, HVLP Air Cap, Tech Air Cap |
Needle Nozzle | 0.60mm, 0.80mm, 1.00mm, 1.20mm, 1.30mm |
Cup Capacity | 125ml (4.23fl oz) or 500ml (16.9fl oz) |
Cup Type | Removable Anti-Drip System |
Air Inlet Couplings | 6.35mm (1/4”) Male BSP |
Paint Filter | 100 mesh |
Weight and Supplied Cup | 125ml Cup: 445.5g (0.98lbs), 500ml Cup: 552.75g (1.22lbs) |
Weight Without Cup | 365g (0.80lbs) |
Dimensions without Cup (W x D x H) | 156.4 x 18 x 158.8mm (6.16 x 0.71 x 6.25") |
Sound Pressure Level (Average) | 80 dB |
Compliance | ATEX II 2G T60°C X (Directive 94/9/CE) |
