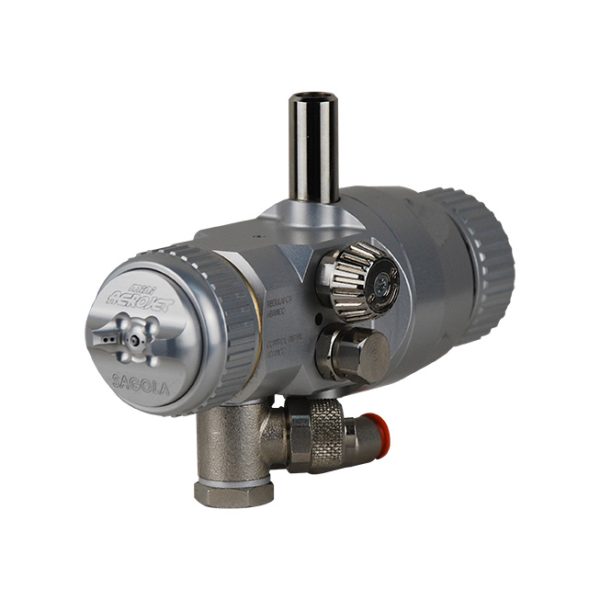

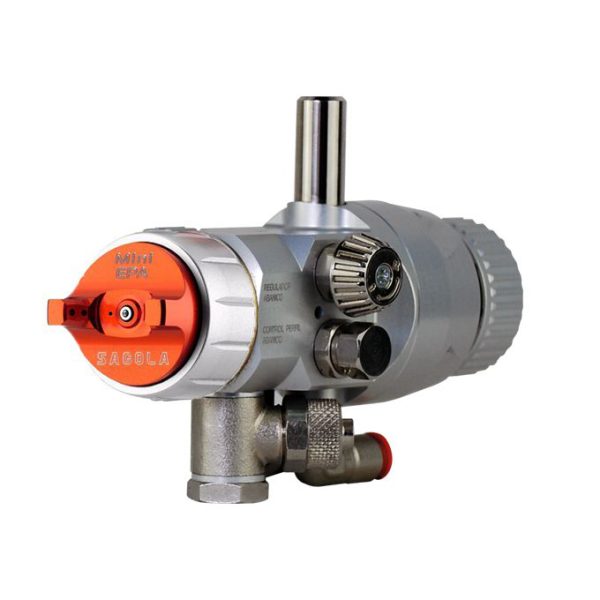

Sagola Mini V Automatic Spray Gun
£744.48 – £751.68
The new Sagola V4000 Automatic Spray Gun is perfect for automated spray lines where finish quality, high production, robustness and durability matter most.
- Description
- Gun Diagram
- Application Guide
- Additional information
- Reviews (0)
Description
Sagola Mini V Automatic Spray Gun
Metal on Metal Technology
Incredibly reliable, the Sagola Mini V has no air diffusers, blind chambers or threads in contact with paint, and no gaskets, seals or plastic parts in the product area – just metal on metal contact, making it easier to clean and maintain.
Versatile
The extensive range of interchangeable needles, nozzles and aircaps enables the Sagola Mini V to apply all types of solvent or water-based products.
Access to complex shaped parts
Thanks to its compact size, the Sagola Mini V fits in the smallest of spaces and can be manouevered to even the most complex of components.
Precision Regulation
Paint flow, fan and pattern shape, 50mm (2″) fan size up to 348mm (13.7″).
- Interchangeable Parts
- Consistent high quality finishes
- Low Maintenance
1) Stainless steel automatic paint packing gland with no gaskets – just metal on metal technology.
2) High precision product regulator.
3) Fan regulator allows the user to adjust the size of the fan.
4) Fan control regulator allows perfect distribution of the spray pattern independently of the product’s viscosity.
5) Stainless steel needle and nozzle.
Mini HVLP
| Aircap/Needle & Nozzle | Paint Flow Output* | Automatic Guns App Guide Air Consumption | Fan size* | Primers | Basecoats -Solvent Based | Basecoats – Water Based | Single Stage Paints | Top Coats (Clear Coats) & Finishes | High Gloss Finishes | Stains, Varnishes, Lacquers, Dyes | Adhesives & Sealers | Acrylics | Enamels | Ceramic & Stove Enamels | High Volume Solids | Abrasives | Metallics |
| 0.30 | 45g/min (1.58oz/min) | 325LPM (11.48CFM) | 283mm (11.14″) |
|
|
|
|
||||||||||
| 0.50 | 66g/min (2.32oz/min) | 325LPM (11.48CFM) | 288mm (11.33″) |
|
|
|
|
||||||||||
| 0.80 | 98g/min (3.45oz/min) | 325LPM (11.48CFM) | 300mm (11.81″) |
|
|
|
|
||||||||||
| 1.00 | 171g/min (6.03oz/min) | 325LPM (11.48CFM) | 312mm (12.28″) |
|
|
|
|
||||||||||
| 1.20 | 207g/min (7.3oz/min) | 325LPM (11.48CFM) | 320mm (12.59″) |
|
|
|
|
|
|||||||||
| 1.30 | 258g/min (9.1oz/min) | 200LPM (7.06CFM) | 326mm (12.83″) |
|
|
||||||||||||
| 1.40 | 276g/min (9.73oz/min) | 325LPM (11.48CFM) | 330mm (12.99″) |
|
|||||||||||||
| 1.60 | 292g/min (10.29oz/min) | 325LPM (11.48CFM) | 336mm (13.22″) |
|
|||||||||||||
| 1.80 | 303g/min (10.68oz/min) | 325LPM (11.48CFM) | 342mm (13.46″) |
|
| 0.30 | 41g/min (1.44oz/min) | 200LPM (7.06CFM) | 280mm (11.02″) |
|
|
|
|
||||||||||
| 0.50 | 60g/min (2.11oz/min) | 200LPM (7.06CFM) | 285mm (11.22″) |
|
|
|
|
||||||||||
| 0.80 | 89g/min (3.13oz/min) | 200LPM (7.06CFM) | 298mm (11.73″) |
|
|
|
|
|
|||||||||
| 1.00 | 157g/min (5.53oz/min) | 200LPM (7.06CFM) | 308mm (12.12″) |
|
|
|
|
|
|
||||||||
| 1.20 | 189g/min (6.66oz/min) | 200LPM (7.06CFM) | 316mm (12.44″) |
|
|
|
|
|
|
|
|||||||
| 1.30 | 258g/min (9.1oz/min) | 325LPM (11.48CFM) | 326mm (12.83″) |
|
|
||||||||||||
| 1.40 | 289g/min (10.19oz/min) | 200LPM (7.06CFM) | 335mm (13.18″) |
|
|||||||||||||
| 1.60 | 296g/min (10.44oz/min) | 200LPM (7.06CFM) | 339mm (13.34″) |
|
|||||||||||||
| 1.80 | 307g/min (10.82oz/min) | 200LPM (7.06CFM) | 348mm (13.7″) |
|
| 0.60 | 71g/min (2.5oz/min) |
52LPM (1.84CFM) |
50mm (1.96″) |
|
|
|
|||||||||||
| 1.00 | 98g/min (3.45oz/min) |
52LPM (1.84CFM) |
60mm (2.36″) |
|
|
| 0.50 | 69g/min (2.43oz/min) |
150LPM (5.29CFM) |
95mm (3.74″) |
|
|
|
Additional information
| Dimensions | 116 x 48 x 58mm (4.5 x 1.8 x 2.3") |
|---|---|
| Weight | 216g (7.6oz) |
| Operation inlet connection | 4mm (0.157") |
| Air inlet connection | 8mm (0.314") |
| Product inlet connection | Tube Ø6xØ4 mm |
| Maximum air pressure | 5bar (72.5psi) |
| Recommended working air pressure | 2 – 3bar (29 – 43.5psi) |
| Average sound pressure level | 84db (EPA) 85db (HVLP) |
| Materials in contact with the product | Stainless Steel, Anodized Aluminum, Graphite Teflon, Nylon, Nickel-Plated Brass |
| Compliance | ATEX II 2G Ex ia IIC T4 Gb (Directive 2014/34/EU), EN 1953, CE |
| Aircaps | Mini HVLP, Mini EPA, Mini TECH, Mini AERO JET |
| Recommended application distance | Mini EPA: 18 – 20cm (7.0 – 7.8") |
| Needle / Nozzle | 0.30, 0.50, 0.60, 0.80, 1.00, 1.20, 1.30, 1.40, 1.60, 1.80 |
| Packing List | Sagola Mini V Automatic Spray Gun complete with Sagola Mini V Aircap, Stainless Steel Needle & Nozzle Kit, Cleaning Brush & Wrench |
