Name: Sagola 4600 Overland Adventure Gravity Spray Gun
SKU: Sagola 4600 Xtreme Overland Adventure
Price: 563.00 GBP
Availability: InStock

Hot

Sagola DVR Titania Air Cap Limited Edition for Sagola Overland Adventure Gravity Spray Gun

Sagola Overland Adventure Main Product Image

Sagola 4600 Overland Adventure Gravity Spray Gun

0 out of 5

( There are no reviews yet. )

£675.60

The Sagola 4600 Overland Adventure has all the qualities of the Sagola 4600 Xtreme, such as excellent atomisation, precise control system and low noise level.

SKU: Sagola 4600 Xtreme Overland Adventure Category: Gravity Spray Guns Tags: 4600 Xtreme, Spray Gun

Air Cap	Titania Air Cap
Needle/Nozzle	1.20mm 1.2mm XL 1.30mm 1.3mm XL 1.40mm Clear

Description
Gun Diagram
Size Guide
Additional information
Reviews (0)

Description

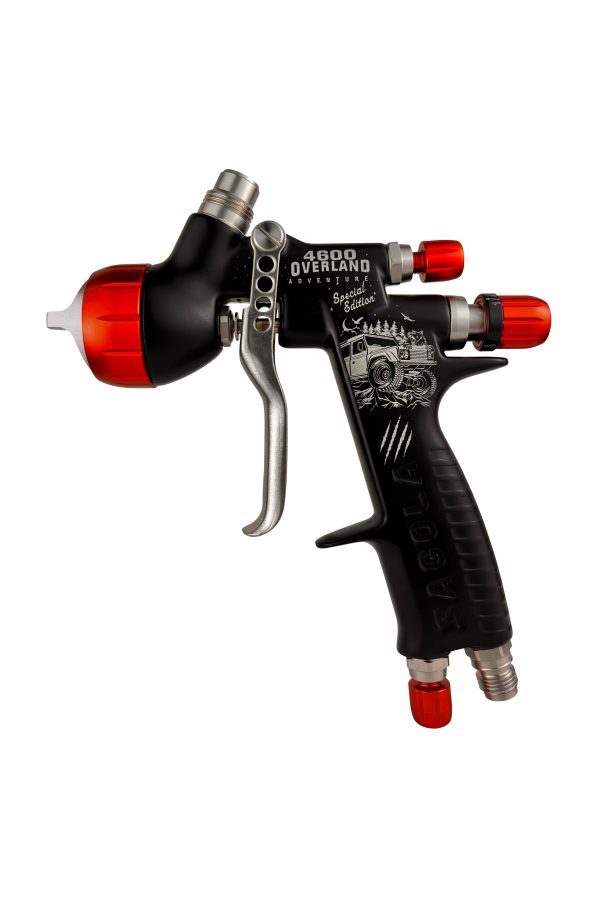

Sagola 4600 Overland Adventure Gravity Spray Gun

The new Special Edition Sagola 4600 Overland Adventure design has been inspired by overland culture and adventure. Lovers of automotive painting and the great outdoors will love the sleek design and surely be inspired on their next paint job.

The Sagola 4600 Overland Adventure has all the qualities of the Sagola 4600 Xtreme, including excellent atomisation, precise control system and low noise level.

As with all of our guns, it has no air diffusers, blind chambers or threads in contact with paint, and no gaskets, seals or plastic parts in the product area – just metal on metal contact making it easier to clean and maintain.

The Overland is available with the 1.2, 1.2XL, 1.3, 1.3XL, 1.4 and the Titania Pro aircap.

Interchangeable Parts
Consistent high quality finishes
Low Maintenance

Sagola 4600 Overland Adventure Manual

Sagola 4600 Overland Adventure Exploded View

Low Maintenance

6. No seals and gaskets in the product area. Made without air diffusers, blind chambers or threads that are in contact with the paint/product/material. Metal in metal contact making this gun extremely easy to maintain and clean.

7. One piece automatic paint packing gland that minimizes the potential for damage and breakage. Mush easier to remove from the gun when cleaning.

Making Your Job Easier

8. Ergonomic aluminum body that is anodized forged. Light and perfectly balanced.

9. Stainless steel trigger increasing operator comfort and reducing fatigue. Smooth trigger flow.

10. Organize your guns with color coded identifiers. Easily manage multiple spray guns.

11. Balanced ergonomic handle.

Kit Contents

Air Cap & Needle/Nozzle Kit
650ml (22fl oz) Reusable plastic gravity cup with product mini-filter
Wrench for removing and fitting the nozzle and all servicing needs
Color code identifiers perfect for identifying guns when there are multiple painters (x3)
Cleaning brush
Key Assembly for changing the air valve

Titania Air Cap Specifications:

Highest level of atomization. This air cap is ideal for clearcoats and gloss finishes. Used for show finishes.

Needle & Nozzle	Ideal for use with:	Working Pressure Range	Air Consumption at 2bar	Output Flow (average)	Application Distance	Fan Width (Max)
1.20mm	Express Drying Clearcoats	2.0 – 2.2bar (29 – 32psi)	315LPM (11.12CFM)	196g/min (6.9oz/min)	18 – 20cm (7 – 7.9”)	285mm (11.2”)
1.25mm	Express Drying Clearcoats	2.0 – 2.2bar (29 – 32psi)	315LPM (11.12CFM)	203g/min (7.1oz/min)	18 – 20cm (7 – 7.9”)	290mm (11.4”)
1.30mm	HS Clearcoats UHS Clearcoats	2.0 – 2.2bar (29 – 32psi)	315LPM (11.12CFM)	222g/min (7.8oz/min)	18 – 20cm (7 – 7.9”)	305mm (12”)
1.35mm	Singe Stage	2.0 – 2.2bar (29 – 32psi)	310LPM (10.95CFM)	229g/min (8.1oz/min)	18 – 20cm (7 – 7.9”)	310mm (12.2”)

Additional information

Air Cap	Titania Air Cap
Needle/Nozzle	1.20mm, 1.2mm XL, 1.30mm, 1.3mm XL, 1.40mm
Cup Capacity	650ml (22fl oz)
Cup Type	Removable Anti-Drip System
Air Inlet Couplings	6.35mm (1/4”) Male BSP
Paint Filter	80 Mesh
Weight with Supplied Cup	670g (1.48lbs)
Weight without Cup	485.5g (1.07lbs)
Dimensions without Cup (W x D x H)	161.77 x 19 x 187.23mm (6.37 x 0.75 x 7.37”)
Sound Pressure Level (Average)	80 dB
Compliance	ATEX II 2G x (Directive 2014/34/EU)
