Sagola 3300 Primer Gravity Spray Gun
£299.70
The Sagola 3300 Primer is a versatile gun that can be optimized for primers. Its robust design and ability to handle various viscosities make it an ideal choice for applying high-build primers.
- Description

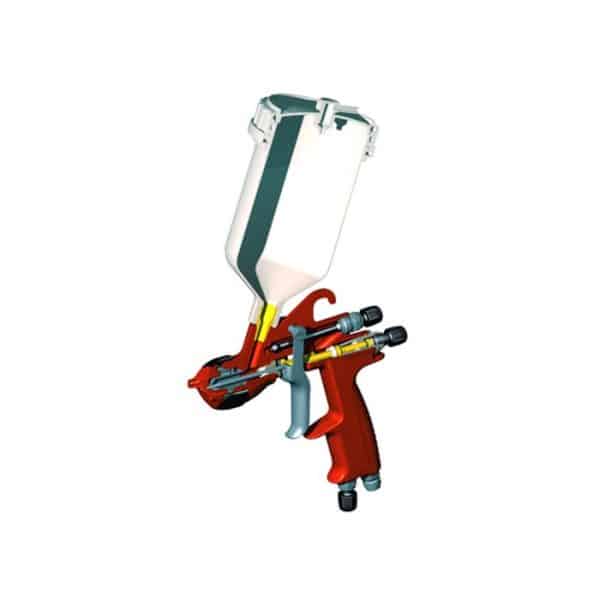

- Gun Diagram
- Size Guide
- Additional information
- Reviews (0)
Description
Sagola 3300 Primer Gravity Spray Gun
The Premier spray gun for all primers.
CONTROL AND CONSISTENCY
The gun’s precise air, fan, and fluid controls allow for consistent and even application, which is critical for creating a smooth and level foundation for your top coats.
DURABLE FOR DEMANDING MATERIALS
Primers can be tough on equipment, but the Sagola 3300’s durable construction and lack of internal gaskets or seals mean it can withstand the use of aggressive primers and is easy to clean afterward.
VERSATILE APPLICATION
While excelling at primers, the Sagola 3300 Primer can be adapted with different aircaps and nozzles to handle a full range of coatings, from primers to base coats and clear coats, making it a true all-in-one solution for a painter’s workflow.
Each gun comes ready to paint including a needle nozzle kit, air cap, cup and cleaning equipment. Along with the initial kit, every part is available for sale allowing for 15+ variations all with the purchase of one gun.
- Interchangeable Parts
- Consistent high quality finishes
- Low Maintenance
Quality Finish
1. Stainless steel nozzle that provides optimal paint flow allowing for fast and smooth applications.
2. Interchangeable aluminum air caps. Identified with different colors and shapes.
3. There are no metallic or plastic external parts used for air distribution, making the cleaning process easier.
4. Regulator is designed for less travel and greater precision. Suitable for left and right handed operation.
Low Maintenence
5. One single piece automatic paint packing gland – minimizing potential damage and breakage and making it easier to remove when cleaning the gun.
6. Manufactured without gaskets or seals in product area. No air diffusers, blind chambers or threads in contact with the paint/product/material. Just metal in contact with metal. Extremely easy to clean and maintain.
Ease of Use
7. Color coded identifiers perfect for differentiating spray guns when there are multiple painters
8. Forged aluminum body; ergonomic, light and perfectly balanced. Soft and silky touch finish.
9. Ergonomically designed, round and comfortable handle for balanced and smooth strokes for a consistent, better quality finish.
10. Ergonomically designed trigger reducing operator discomfort and fatigue.
11. Fan width regulator.
Sagola 3300 Kit Contents
Each Sagola 3300 kit is supplied with the following:
1. Air cap, needle & nozzle kit (supplied fitted)
2. Reusable plastic gravity cup with product mini-filter
3. Wrench for removing and fitting the nozzle and all servicing needs
4. Color Code Identifiers for identifying guns when there are multiple painters
5. Cleaning Brush
6. Key Assembly for changing the air valve
EPA Air Cap Specifications:Ideal for primed surfacers.
| Needle & Nozzle | Ideal for use with: | Working Pressure Range | Air Consumption 29 PSI | Output Flow (average) | Application Distance | Fan Width (Max) |
| 1.40mm | Sanding Surfacers | 1.5 – 2.0bar (22 – 29psi) |
250LPM (8.83CFM) |
179g/min (6.3oz/min) |
18 – 20cm (7 – 7.9”) |
245mm (9.65”) |
| 1.60mm | Sanding Surfacers | 1.5 – 2.0bar (22 – 29psi) |
250LPM (8.83CFM) |
156g/min (5.5oz/min) |
18 – 20cm (7 – 7.9”) |
225mm (8.9”) |
| 1.80mm | Sanding Surfacers | 1.5 – 2.0bar (22 – 29psi) |
250LPM (8.83CFM) |
184g/min (6.5oz/min) |
18 – 20cm (7 – 7.9”) |
245mm (9.65”) |
HVLP Air Cap Specifications:For sanding surfacers and basecoats.
| Needle & Nozzle | Ideal for use with: | Working Pressure Range | Air Consumption 29 PSI | Output Flow (average) | Application Distance | Fan Width (Max) |
| 1.20mm | Basecoats | 1.8 – 2.0bar (26 – 29psi) |
360LPM (12.71CFM) |
149g/min (5.3oz/min) |
18 – 20cm (7 – 7.9”) |
265mm (10.4”) |
| 1.30mm | Basecoats | 1.8 – 2.0bar (26 – 29psi) |
360LPM (12.71CFM) |
145g/min (5.1oz/min) |
18 – 20cm (7 – 7.9”) |
245mm (9.6”) |
| 1.40mm | Basecoats | 1.8 – 2.0bar (26 – 29psi) |
360LPM (12.71CFM) |
161g/min (5.7oz/min) |
18 – 20cm (7 – 7.9”) |
250mm (9.8”) |
| 1.60mm | Sanding Surfacers | 1.5 – 2.0bar (22 – 29psi) |
360LPM (12.71CFM) |
172g/min (6.06oz/min) |
18 – 20cm (7 – 7.9”) |
260mm (10.2”) |
| 1.80mm | Sanding Surfacers | 1.5 – 2.0bar (22 – 29psi) |
360LPM (12.71CFM) |
193g/min (6.8oz/min) |
18 – 20cm (7 – 7.9”) |
295mm (11.6”) |

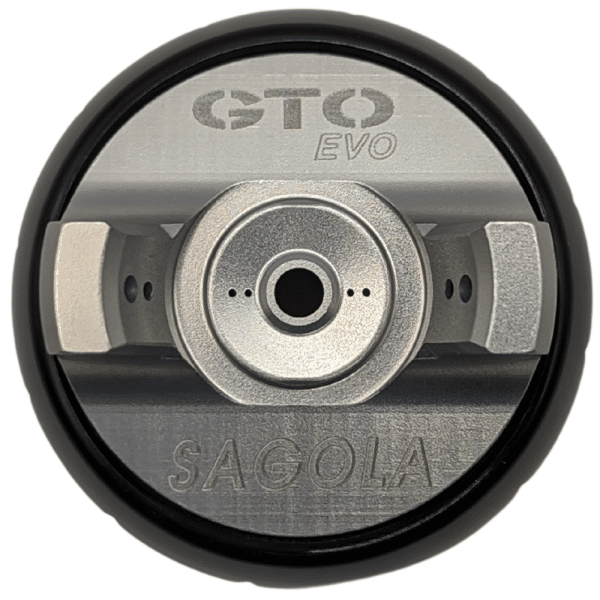

EVO Air Cap Specifications:Ideal for wet on wet primers.
| Needle & Nozzle | Ideal for use with: | Working Pressure Range | Air Consumption 29 PSI | Output Flow (average) | Application Distance | Fan Width (Max) |
| 1.30mm | Wet on Wet Primers | 1.8 – 2.0bar (26 – 29psi) |
255LPM (9.01CFM) |
172g/min (6.06oz/min) |
18 – 20cm (7 – 7.9”) |
260mm (10.2”) |
| 1.40mm | Wet on Wet Primers | 1.8 – 2.0bar (26 – 29psi) |
255LPM (9.01CFM) |
179g/min (6.3oz/min) |
18 – 20cm (7 – 7.9”) |
280mm (11”) |
Additional information
| Air Cap | EPA Air Cap, HVLP Air Cap, EVO Air Cap |
|---|---|
| Needle/Nozzle | 1.30mm, 1.40mm, 1.60mm, 1.80mm |
| Cup Capacity | 650 ml (22 fl oz) |
| Air Inlet Couplings | 6.35mm (1/4”) Male BSP |
| Paint Filter | 80 mesh |
| Weight with Supplied Cup | 662.4 g (1.46 lbs) |
| Weight without Cup | 474.8 g (1.05 lbs) |
| Dimensions without Cup (W x D x H) | 18.2 x 1.9 x 17.8 cm – (7.16 x 0.75 x 7.05”) |
| Sound Pressure Level (Average) | 80 dB |
