Sagola 3400 COMPACT CLEAR Gravity Spray Gun
£408.90
Small in size, big on precision. The Sagola 3400 COMPACT is designed for flawless results in tight, hard-to-reach areas.
Ergonomically balanced for both small and large hands, it’s the ideal gun for offering full control even in confined spaces.
- Description
- Additional information
- Reviews (0)
- Gun Diagram
- Technical Data
Description
Sagola 3400 COMPACT CLEAR Gravity Spray Gun
Compact and versatile with the same high quality finish.
SMALL & LIGHTWEIGHT
Considerably smaller and lighter, its reduced dimensions make it agile, ideal for smaller hands or for spraying parts with complex surfaces and hard to reach areas.
COMPACT GUN WITH A LARGE FAN WIDTH
28.5cm (11.22”) fan width from a compact gun, with a wide range of high transfer aluminium aircaps and needles & nozzles to fit your spraying needs.
VERSATILITY

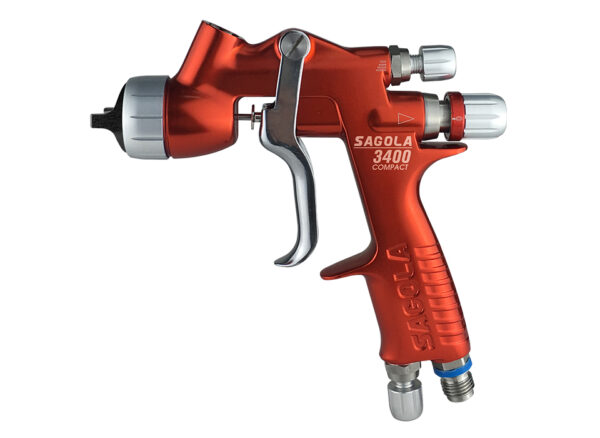

Light, ergonomic and strong, the Sagola 3400 Compact reduces mist and saves paint. Tested and developed on waterborne products it is ideal for use with the latest paint technologies.
METAL ON METAL CONTACT
No gaskets, rubber or plastic parts on product area. Designed without air diffusors. Easy to maintain and clean.
- Interchangeable Parts
- Consistent high quality finishes
- Low Maintenance
Additional information
| Air Cap | COMPACT CLEAR |
|---|---|
| Needle/Nozzle | 0.8mm, 1.00mm, 1.20mm, 1.30mm, 1.40mm |
| Cup Capacity | 650ml (22fl oz) |
| Cup Type | Removable Anti-Drip System |
| Air Inlet Connection | BSP 1/4” Male (high flow) |
| Paint Filter | 80 Mesh |
| Weight without Cup | 365 g (0.80 lbs) |
| Sound Pressure Level (Average) | 80 dB |
Be the first to review “Sagola 3400 COMPACT CLEAR Gravity Spray Gun” Cancel reply

| Output Flow | 49 – 162 g/min (1.7 – 5.7 oz/min) |
| Air Consumption | 190 L/min (7.61 cfm) |
| Fan Width | 11.0 – 28.5 cm (4.33 – 11.22”) |
| Application Distance | 18 – 20 cm (7 – 7.9”) |
| Air Inlet Pressure | 1.0 – 2.0 bar (14.5 – 29 psi) |
